Home electrical distribution box installation tips and prices

Installing a home electrical distribution box requires professional knowledge, proper tools, and careful planning, with typical installation costs ranging from $120 to over $1,500 depending on complexity.

Installation Overview

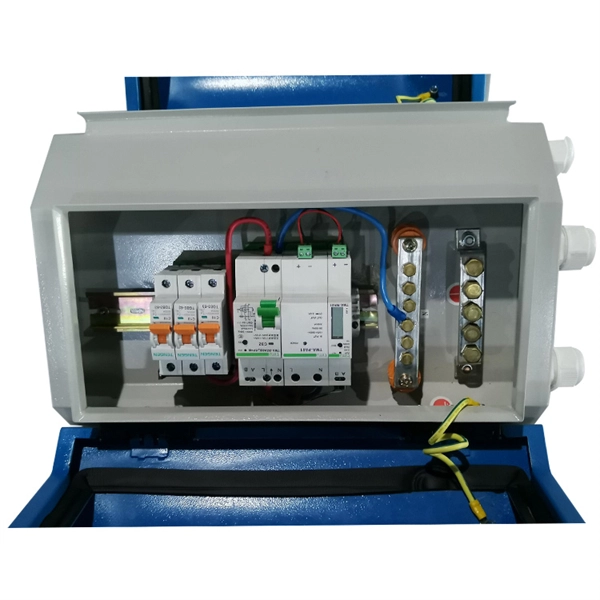

A distribution box (also called a panelboard or consumer unit) is the central hub for distributing electricity safely to multiple circuits in a home. It houses circuit breakers, fuses, and isolator switches, and may include advanced devices like RCDs or RCBOs for added protection .

Step-by-Step Installation

1. Select the Location: Choose a dry, accessible area near the main power supply, away from water, flammable, or corrosive substances. Outdoor boxes require waterproof enclosures with IP66 or NEMA 4 ratings .
2. Prepare Tools and Materials: Essential tools include a screwdriver, wire stripper, electric drill, multimeter, and insulation resistance tester .
3. Mount the Box: Secure the enclosure to the wall or designated surface, ensuring it is level and stable.
4. Wire the Circuits: Connect incoming power lines to the main breaker, then branch circuits to individual breakers. Follow proper color coding and safety standards .
5. Test and Inspect: Use a multimeter to verify connections, check insulation resistance, and ensure all breakers function correctly.
6. Professional Recommendation: Due to the risk of electric shock, short circuits, or fire, hiring a licensed electrician is strongly advised .

Cost Considerations

The total cost depends on box type, number of circuits, installation complexity, and local labor rates:

• Basic single-gang box: $110–$260 for a straightforward indoor installation, including materials and labor .
• Mid-range installation: Two boxes, moderate depth, permit required, total around $435 .
• High-end setups: Outdoor waterproof boxes, multiple circuits, conduit runs, full inspection, can exceed $1,500 .
• Labor rates: Electricians typically charge $75–$125 per hour, with total labor time ranging from 1–5 hours depending on complexity .
• Additional costs: Safety features like AFCI/GFCI protection add $150–$300 per box, and permits or inspections may increase the total budget .

Factors Affecting Price

• Box material: Steel, stainless steel, plastic, or fiberglass enclosures vary in cost and durability .
• Number of circuits: More circuits require larger panels and more wiring.
• Installation environment: Difficult access, outdoor exposure, or long wiring runs increase labor and material costs.
• Customization: Specialized labeling, smart monitoring, or integration with building management systems can raise the price .

Summary

Installing a home electrical distribution box is a critical safety task that requires careful planning, proper tools, and professional expertise. Costs vary widely based on box type, complexity, and labor, with typical residential installations ranging from $120 for a simple box to over $1,500 for premium setups. Prioritizing safety, compliance with electrical codes, and quality materials ensures long-term reliability and protection for your home electrical system.
