Installation of Gigabit High-Speed Optical Modules

Install a gigabit optical module by preparing the device and module, observing ESD precautions, inserting the module carefully, connecting fibers, and verifying connectivity.

Preparation

1. Verify Compatibility: Ensure the network device supports the specific module type (SFP, SFP+, SFP28) and speed. Confirm the fiber type (single-mode or multi-mode) and connector type (LC, SC, ST, FC) match the module specifications .
2. ESD Protection: Wear an ESD wrist strap or gloves connected to a grounded source to prevent electrostatic damage to the module .
3. Check Optical Power: Measure the input optical power to ensure it is within the safe range for the module to prevent damage .

Installation Steps

1. Remove Dust Plugs: Take off the dust plug from the optical port and keep it for future use .
2. Insert the Module: Align the module with the port and insert it smoothly until it clicks into place. Do not force the module; if it does not fit, rotate it and try again .
3. Verify Installation: Close the release handle and gently try to pull the module. If it cannot be removed, it is installed correctly .

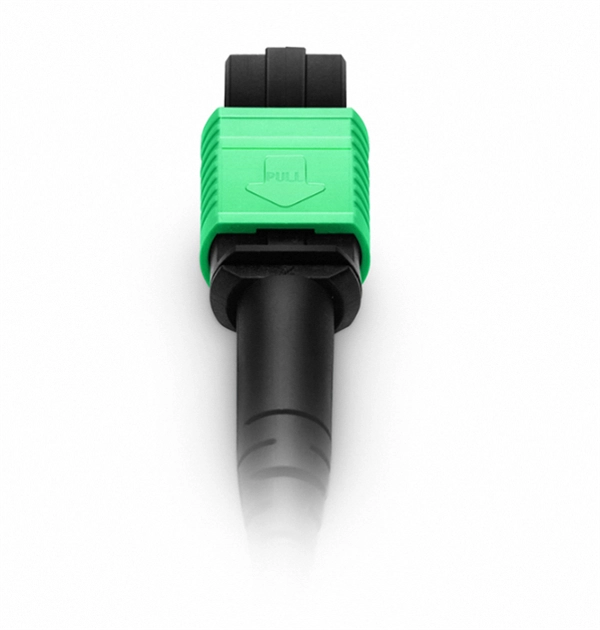

4. Connect Fiber Cables: After the module is installed, connect the fiber optic cables. Ensure the fiber ends are clean and properly aligned. Avoid touching the fiber tips and use dust caps on unused ports .
5. Check Connectivity: Power on the device and verify link status. Test the connection to ensure the module is functioning correctly and the network link is stable .

Maintenance Tips

• Regular Cleaning: Clean the module interfaces and fiber connectors with appropriate tools to maintain signal quality .
• Avoid Excessive Force: Never force the module or fiber connections, as this can damage the device or module .
• Use Certified Modules: Prefer manufacturer-certified or MSA-compliant modules to ensure reliability and avoid service issues . Following these steps ensures safe installation, prevents damage to sensitive components, and maintains reliable network performance.
