Power Supply for Mechatronics Equipment

Selecting the right power supply is critical for reliable, efficient, and safe operation of mechatronic systems.

Importance of Power Supplies in Mechatronics

Mechatronic systems integrate mechanical components, sensors, actuators, and control electronics to perform precise tasks. A reliable power supply ensures that all components operate within their designed specifications, maintaining system performance, efficiency, and safety. Inadequate or poorly designed power supplies can lead to system failures, reduced lifespan, and safety hazards .

Types of Power Supplies

• Linear Power Supplies: Use a linear regulator to convert input voltage to the desired output. They are simple, reliable, and produce low noise and electromagnetic interference (EMI), but are less efficient and generate more heat compared to switching supplies .

• Switching Power Supplies (SMPS): Convert input voltage using high-frequency switching circuits. They are compact, highly efficient, and widely used in mechatronics, though they can generate EMI and require careful design to minimize noise .

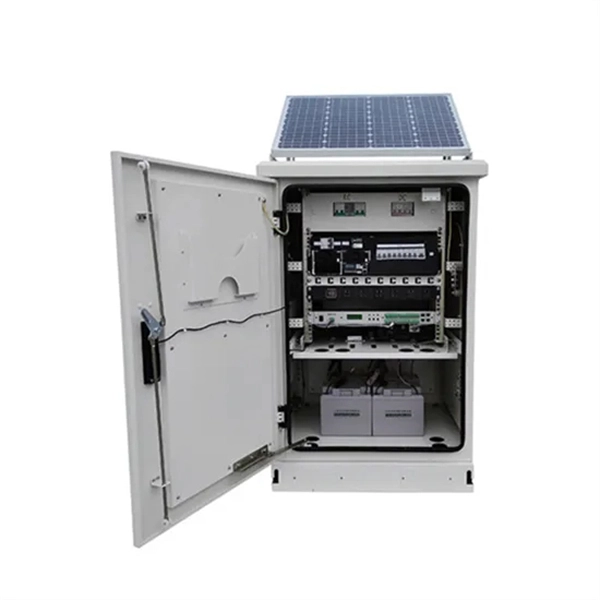

• Uninterruptible Power Supplies (UPS): Provide backup power during mains failures, ensuring continuous operation of critical systems. UPS units typically combine batteries, inverters, and switching circuits .

• Specialized Motor Power Supplies: For systems with motors or solenoids, power supplies must handle large peak currents and rapid load changes. Some models, like the NIPRON GPSA series, are designed to deliver up to three times the rated peak current to accommodate motor loads without voltage dips .

Key Selection Criteria

1. Voltage and Current Ratings: Ensure the output voltage matches system requirements and the current rating can handle peak loads, including motors and actuators .

2. Efficiency and Power Factor: High efficiency reduces energy losses and heat, while a high power factor minimizes strain on the electrical grid .

3. Protection Features: Overvoltage (OVP), undervoltage (UVP), and short-circuit protection (SCP) safeguard both the power supply and connected devices .

4. Noise and EMI: Consider the impact of switching noise on sensitive sensors and control electronics. Implement filtering or shielding if necessary .

5. Reliability and MTBF: Choose power supplies with high Mean Time Between Failures (MTBF) for long-term operation .

6. Certifications: Compliance with UL, CE, and RoHS ensures safety and environmental standards are met .

Practical Considerations

• Multi-output vs Single-output: Multi-output supplies are useful for systems requiring multiple voltage levels, reducing the need for additional units .

• Autoranging and Programmable Supplies: For R&D or testing, autoranging DC supplies allow precise voltage and current adjustments, supporting flexible experimentation and prototyping .

• Series and Parallel Configurations: High-voltage or high-current applications may require connecting multiple supplies in series or parallel, with proper protection to prevent exceeding insulation limits .

Conclusion

Choosing the right power supply for mechatronics equipment involves balancing voltage/current requirements, efficiency, protection, noise, and reliability. For motor-driven systems, consider peak current handling, while for sensitive electronics, low-noise and stable output are critical. Proper selection ensures optimal performance, safety, and longevity of the mechatronic system .
