Single-mode fiber inserted into optical module

To connect a single-mode fiber to an optical module, ensure fiber type compatibility, use the correct transceiver (SFP/SFP+), and match connector types, optionally employing media converters for mode conversion.

Understanding Single-Mode Fiber and Optical Modules

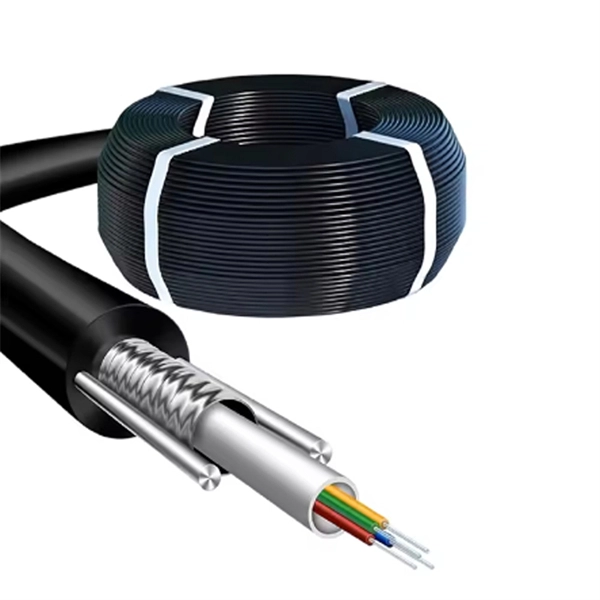

Single-mode fiber (SMF) has a small core (about 8–10 microns) that allows only one light mode to propagate, enabling long-distance, high-bandwidth transmission with minimal signal loss . Single-mode optical modules, such as SFP, SFP+, or BiDi transceivers, are designed to work with SMF and typically operate at wavelengths of 1310nm or 1550nm . These modules convert electrical signals from network devices into optical signals for transmission and vice versa.

Steps to Connect Single-Mode Fiber

  1. Select the Correct Optical Module
    • Ensure the module is single-mode compatible. For long-distance links, choose modules like 10GBASE-LR or 40G/100G single-mode modules .
    • For single-fiber (BiDi) modules, verify that the complementary transceiver uses the correct transmit/receive wavelengths (e.g., 1310nm/1550nm) to avoid signal loss .
  2. Check Connector Types
    • Single-mode fibers commonly use LC connectors for SFP/SFP+ modules or MPO connectors for high-density modules .
    • Ensure the fiber connector matches the module port to prevent physical damage and signal degradation.
  3. Use Media Converters if Needed
    • If connecting single-mode fiber to a multimode module or vice versa, a fiber-to-fiber media converter can bridge the two types. For example, one slot can host a multimode SFP+ transceiver and the other a single-mode SFP+ transceiver, extending the link distance from hundreds of meters to several kilometers .
  4. Physical Connection
    • Clean the fiber ends to remove dust or debris.
    • Insert the fiber into the module port until it clicks securely.
    • Avoid bending the fiber sharply to prevent attenuation or breakage.
  5. Verify Link and Performance
    • Check the network device for link status.
    • Use an optical power meter or network monitoring tools to ensure signal integrity and proper transmission.

Additional Considerations

  • Distance and Bandwidth: Single-mode modules are ideal for long-distance connections (up to 120 km or more), while multimode modules are better for short distances .
  • Mode Compatibility: Mixing single-mode fiber with multimode modules without a converter can cause significant signal loss .
  • Deployment Environment: Ensure proper routing, strain relief, and protection of fibers in data centers or telecom installations. By following these steps—selecting the right module, matching connectors, optionally using media converters, and verifying the link—you can reliably connect a single-mode fiber to an optical module for high-speed, long-distance network communication .
