Fiber optic cable drop cable connection method

Fiber optic drop cables can be connected using either splicing or connectors, with installation methods including aerial, buried, duct, pushable, and blown techniques depending on deployment requirements.

Drop Cable Installation Methods

1. Aerial Installation: Drop cables are suspended between poles or other overhead structures. Self-supporting figure-8 cables with an integral messenger wire are commonly used, allowing direct attachment to poles or building facades with hook clamps. These cables are designed to withstand UV exposure, wind, and temperature fluctuations . 2. Buried Installation: Cables can be directly buried in trenches or conduits. They often include rodent-resistant jackets and water-blocking layers to prevent moisture ingress. Direct-burial cables are cost-effective for underground deployments in areas with minimal mechanical risk . 3. Duct Installation: Fiber can be pulled through pre-installed ducts. This method is suitable for short distances and allows easier replacement, but longer runs increase tension and risk of fiber damage. Skilled personnel are recommended for duct pulling . 4. Blown Installation: Compressed air is used to blow microcables through ducts over long distances. This method is robust and increasingly popular due to miniaturized air-blown microcables, though it requires specialized equipment and can be costly . 5. Pushable Fiber: Cables can be manually or mechanically pushed from the distribution point to the subscriber premises. Preterminated pushable connectors reduce splicing labor and allow easy replacement if damaged .

Drop Cable Termination Methods

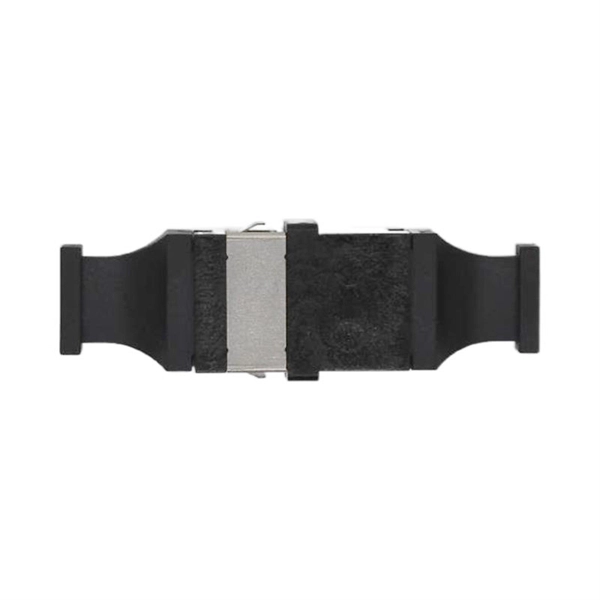

1. Fusion Splicing: Provides a permanent, low-loss connection by fusing fiber ends together. It offers superior optical performance and minimal signal reflection, making it ideal for greenfield deployments or new construction where future rearrangement is unlikely . 2. Mechanical Splicing: Uses alignment fixtures to join fibers without fusion. It is faster and more flexible than fusion splicing, commonly used in FTTH installations where operational flexibility is required . 3. Connectors: Fiber optic connectors provide an access point for testing and easy reconfiguration. They are suitable for applications requiring flexibility, such as connecting ONTs (Optical Network Terminals) with preinstalled interfaces. While convenient, connectors may have slightly higher insertion loss compared to splicing .

Cable Types and Considerations

• Fiber Count: Single-fiber (1F) for residential, dual-fiber (2F) for redundancy or small business, and quad-fiber (4F) for enterprise or multi-dwelling units .
• Fiber Type: G.657 bend-insensitive fibers are common for drop cables, allowing tight bends (down to 20mm radius) for indoor routing .
• Strength Members: Metallic or aramid fibers provide tensile strength and compression resistance.
• Outer Jacket: LSZH or PE jackets protect against fire, moisture, and environmental stress .

Best Practices

• Match cable type and installation method to environmental conditions and deployment scenario.
• Use fusion splicing for permanent, high-performance connections; connectors for flexible, testable access points.
• Ensure proper handling to avoid fiber damage during pulling, blowing, or pushing.
• Consider future network expansion when selecting termination methods and cable routing. By combining the appropriate installation method with the correct termination technique, FTTH networks can achieve reliable, high-performance connections from the distribution point to the subscriber premises .
