Smart Building Fiber Optic Cable Installation

Fiber optic cabling is the backbone of smart buildings, providing high-speed, reliable connectivity for IoT, automation, and future-proof network infrastructure.

Importance of Fiber in Smart Buildings

Fiber optic cables are essential for smart buildings because they deliver high bandwidth, low latency, and immunity to electromagnetic interference, supporting IoT devices, security systems, HVAC, lighting, and building automation platforms ( ). Unlike copper, fiber can handle long distances and high data volumes, enabling seamless integration of multiple systems on a single optical platform ( ).

Planning and Design

Effective installation begins with site surveys, route planning, and stakeholder consultation. Key steps include:

• Mapping cable paths through ceilings, risers, conduits, or underground ducts.
• Coordinating with architects, engineers, and utility providers to avoid conflicts with electrical or plumbing systems ( ).
• Selecting fiber types: single-mode OS2 for long-distance backbones and multi-mode OM3/OM4 for shorter intra-building links ( ).
• Planning for future scalability, including additional fibers, modular splice systems, and redundant paths for critical systems ( ).

Installation Methods

Fiber optic cables can be installed using several methods depending on the environment:

• Indoor/Building Backbone: Use tight-buffered or mini-breakout cables in conduits, cable trays, or raised floors. Maintain proper bend radius and avoid excessive tension ( ).
• Direct-Buried Outdoor Cables: Lay armored cables in trenches with protective sand layers and warning tape. Depth typically ranges from 1–1.2 meters, deeper in frost-prone areas ( ).
• Aerial Cables: Suspend cables on poles or building structures using messenger wires, ensuring proper sag and tension to prevent damage ( ).

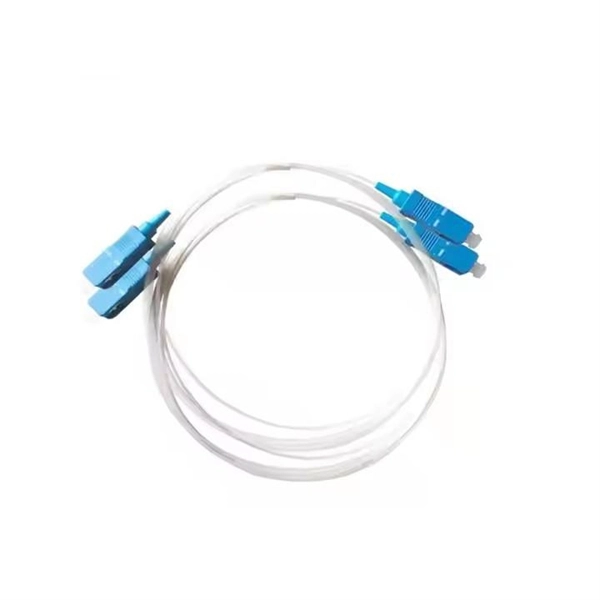

• FTTH/FTTR Deployments: Use pre-terminated drop cables or mini-breakout fibers for multi-dwelling units, enabling fast, tool-free connections ( ).

Termination, Splicing, and Testing

• Fusion splicing is preferred for low-loss connections, while mechanical splicing or pre-terminated assemblies are used for quick deployment ( ).
• Testing includes OTDR, insertion loss, return loss, and continuity checks to ensure signal integrity ( ).
• Proper labeling and documentation are critical for maintenance and future upgrades ( ).

Integration with Building Automation

Fiber networks in smart buildings support KNX, BACnet, and other automation protocols via media converters, enabling real-time control with latencies below 1 ms ( ). Redundant ring topologies ensure 99.999% availability for critical systems like security, access control, and emergency lighting.

Standards and Compliance

Installations must comply with:

• TIA-568, ISO/IEC 11801, IEC 61300-3-35 for cabling and testing.
• DIN EN 50173-1 for structured cabling in smart buildings.
• Fire safety and CPR classifications for indoor cables ( ).

Maintenance and Longevity

Fiber networks require minimal maintenance but should be regularly inspected for:

• Physical damage, bends, or tension issues.
• Connector cleanliness and OTDR baseline comparisons.
• Ensuring proper cable management in trays and racks ( ).

Benefits

• Future-proofing: Supports 5G, 8K streaming, and high-speed IoT networks.
• Energy efficiency: Passive optical networks reduce energy consumption by up to 70% compared to copper systems.
• Scalability: Modular systems allow easy expansion without major recabling ( ). By following these best practices, smart buildings can achieve high-performance, reliable, and scalable fiber optic networks that support current and future technological demands.
