Upgrading of DC combiner box in photovoltaic power station

Upgrading DC combiner boxes enhances safety, monitoring, and operational efficiency in PV power stations, especially in aging installations.

Importance of DC Combiner Boxes

A DC combiner box collects DC output from multiple solar panel strings and merges them into a single main DC output that feeds the inverter. It provides overcurrent protection, surge protection, and a safe disconnect point for maintenance, while centralizing string connections to reduce wiring complexity and fault risks . In large-scale PV plants, combiner boxes also enable string-level monitoring, allowing operators to detect underperforming strings, blown fuses, or module failures .

Reasons for Upgrading

Older combiner boxes often face issues such as:

• Insulation aging and component wear, increasing the risk of faults.
• Communication failures, preventing real-time monitoring of string performance.
• Limited monitoring capabilities, reducing operational efficiency and ROI . Upgrading addresses these issues by improving safety, reliability, and energy yield.

Key Features in Modern Upgrades

Modern DC combiner boxes include:

• Intelligent monitoring modules with LCD displays for string current, voltage, temperature, and alarm status of breakers and surge protectors .
• Arc fault detection and surge protection devices (SPDs) compliant with IEC 61643-31 standards .
• DC isolator switches for safe disconnection during maintenance.
• Flexible installation to adapt to different box sizes, string counts (1–6 strings), and communication protocols .

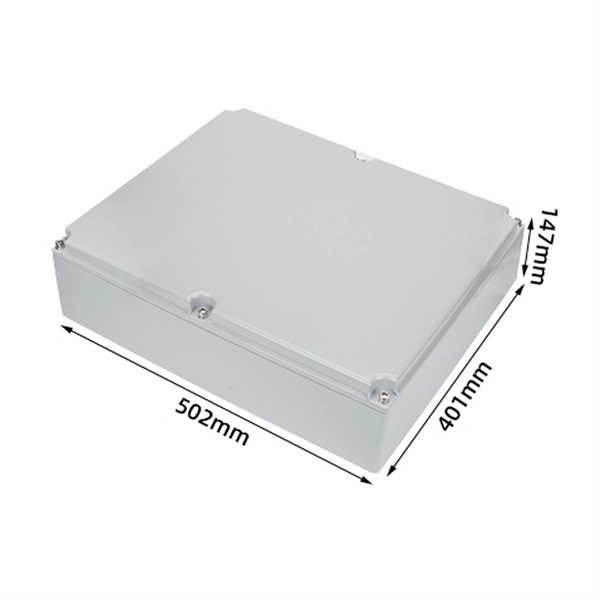

• IP65/66-rated enclosures to protect against dust, moisture, and extreme weather .

Upgrade Considerations

When upgrading a DC combiner box:

1. Assess string configuration: Ensure the new box supports the number of strings and current ratings.
2. Compliance with standards: Follow IEC 60364-7-712 for PV installations and IEC 61439-2 for low-voltage switchgear .
3. Monitoring integration: Connect to the backend system via RS485 or other communication protocols for real-time data.
4. Component selection: Use DC fuses or MCBs, Type 2 SPDs, busbars, and isolator switches suitable for the system voltage (600–1500V DC) .
5. Mechanical installation: Mount in a ventilated, stable location with sufficient space for cable routing and maintenance .

Benefits of Upgrading

• Enhanced safety: Improved surge and arc protection reduces fire and equipment damage risks.
• Operational efficiency: Real-time monitoring allows faster fault detection and maintenance planning.
• Extended lifespan: Modern components resist environmental stress and reduce downtime.
• Optimized ROI: Accurate string monitoring improves plant performance and energy yield . Upgrading DC combiner boxes is a critical step for maintaining long-term reliability and efficiency in PV power stations, particularly for aging installations with outdated or failing components.
