Fiber Optic Terminal Box Wiring and Router

A fiber optic terminal box organizes and protects fiber cables, allowing splicing and adapter connections, which then link to a router via an ONT for internet access.

Fiber Termination Box Overview

A fiber termination box (FTB) is used to terminate, organize, and protect fiber optic cables at the user end. It serves as the interface between the incoming fiber line and the pigtails that connect to network devices ( ). Key functions include:

• Fiber protection: Prevents bending, dust contamination, and accidental damage.
• Cable organization: Maintains proper bend radius and avoids entanglement.
• Splicing and adapter support: Allows fusion splicing of fiber cores to pigtails and connection via SC, LC, FC, or ST adapters.
• Signal integrity: Ensures proper alignment to minimize signal loss.

Fiber termination boxes come in indoor and outdoor versions, with outdoor boxes offering weatherproofing and UV resistance, while indoor boxes are compact and easier to maintain ( ). They can be wall-mounted, rack-mounted, or installed on DIN rails depending on the environment.

Wiring the Fiber Termination Box

1. Prepare the fiber cables: Inspect for damage, strip the outer jacket, and clean the fiber with alcohol or a specialized cleaner ( ).

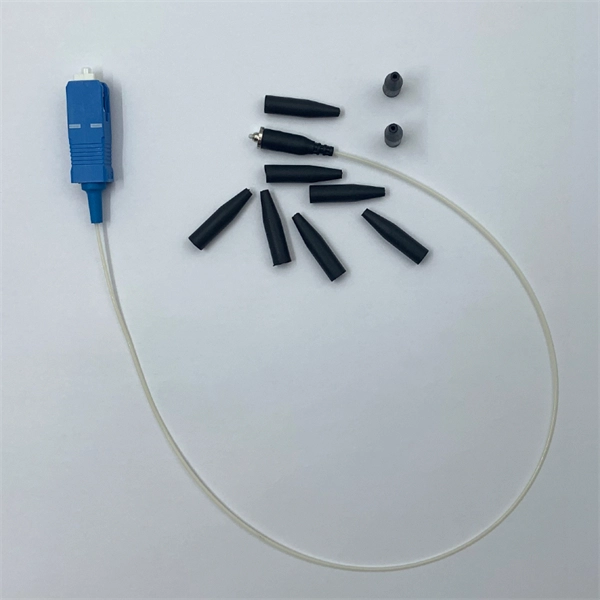

2. Splice fibers to pigtails: Use a fusion splicer to connect the incoming fiber to pre-terminated pigtails. Place the splices in the splice tray inside the box.
3. Install adapters: Insert SC, LC, or other adapters into the box to allow easy connection to patch cords.
4. Route and secure fibers: Coil excess fiber neatly, maintaining the minimum bend radius, and secure with cable ties or clips. Label each fiber for identification.
5. Close the box: Ensure the cover is properly sealed to protect fibers from dust and environmental factors.

Connecting to a Router

1. Install the Optical Network Terminal (ONT): This device converts the fiber signal to Ethernet. Connect the fiber from the termination box to the ONT's fiber port ( ).
2. Power the ONT: Plug in the power adapter and wait for the status lights to stabilize.
3. Connect the router: Use an Ethernet cable to link the ONT's LAN port to the router's WAN port. Power on the router and confirm connectivity.
4. Configure the network: Set up Wi-Fi SSID, password, and any additional router settings as needed.

Best Practices

• Avoid tight bends or stacking splices incorrectly to prevent signal loss ( ).
• Use proper labeling for easy maintenance and troubleshooting.
• Ensure the box type matches the installation environment (indoor vs outdoor).
• Maintain slack in the fiber to allow future adjustments without stress on the cables.

By following these steps, you can safely wire a fiber optic terminal box and connect it to a router, ensuring reliable high-speed internet performance.
